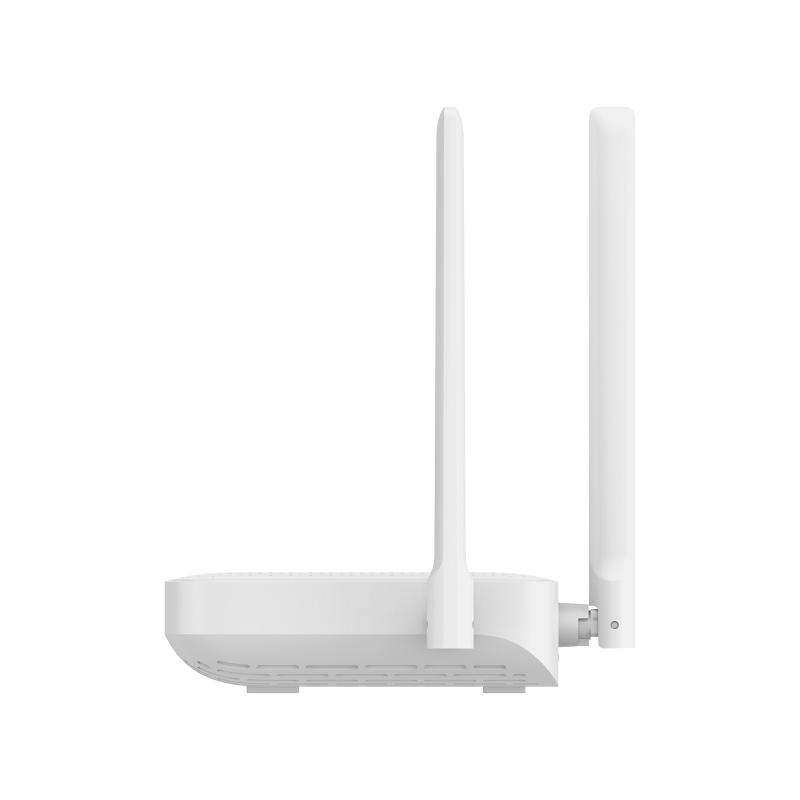

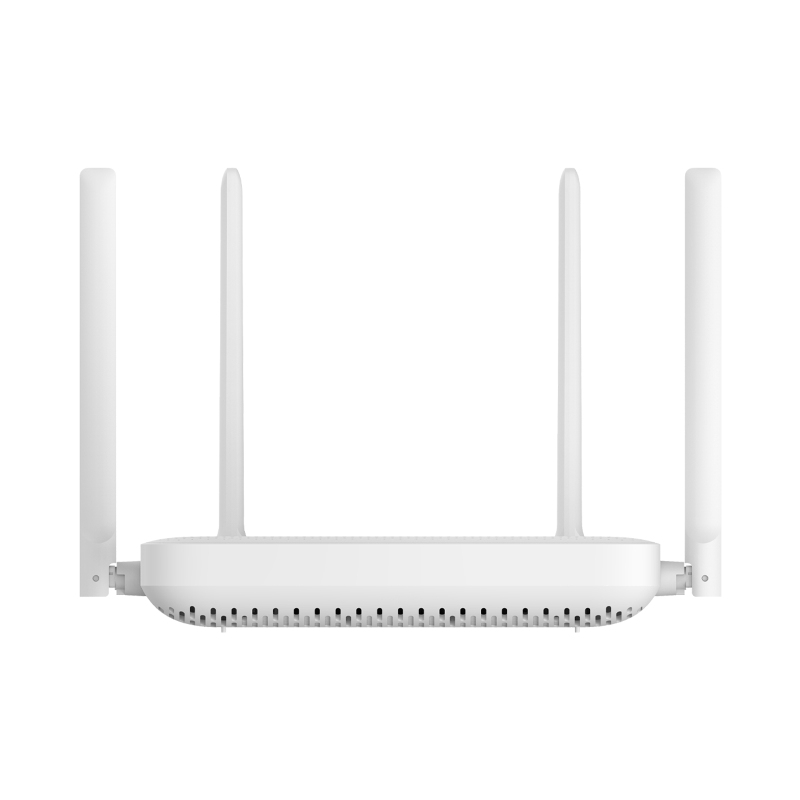

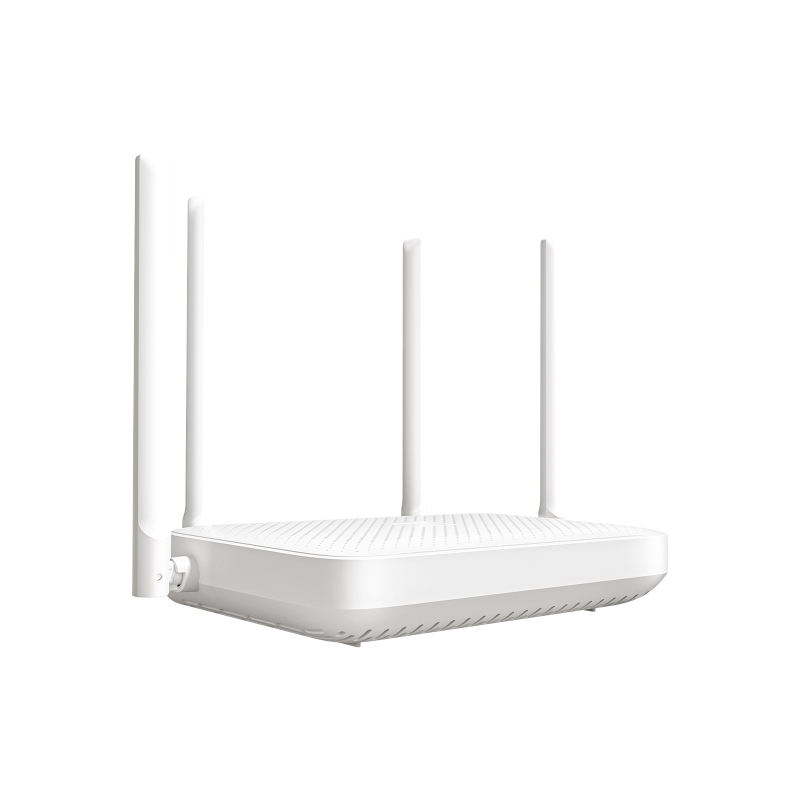

Xiaomi Router AX1500

• Product name Xiaomi Router AX1500
• Product dimensions 247 × 143.5 × 178.7 mm
• Antenna 4 x High performance antennas
• Wi-Fi 2.4GHz Wi-Fi: 2×2 (IEEE 802.11n protocol, up to 300Mbps)
• 5GHz Wi-Fi: 2×2 (IEEE 802.11ax protocol, up to 1201Mbps)
• Cooling Natural heat dissipation

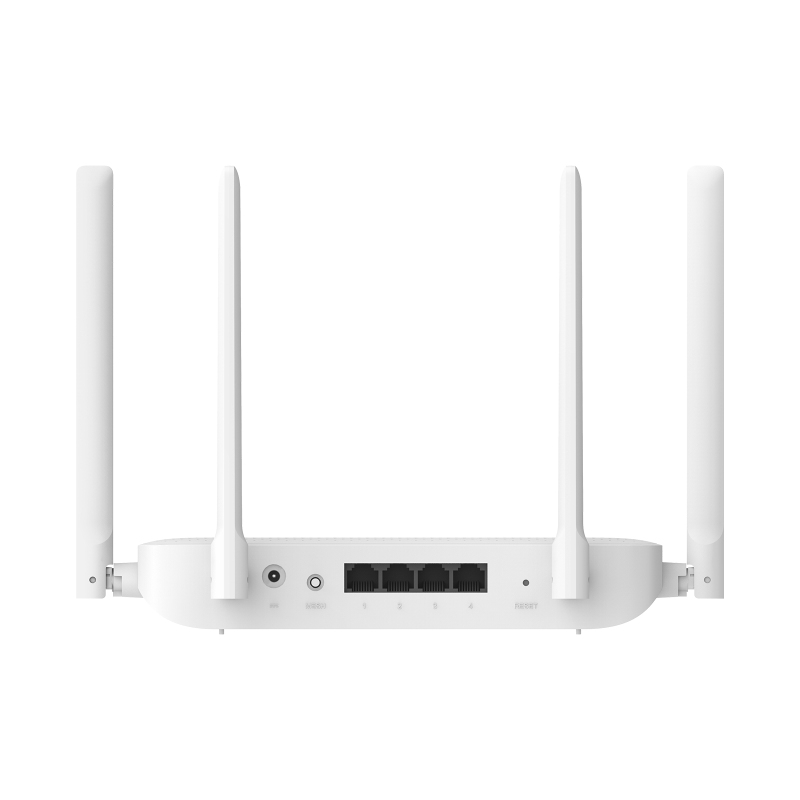

• Ports 4 x 10/100/1000 Mbps self-adaptive WAN/LAN ports (Auto MDI/MDIX)
• Bright Indications 2 lights (1 for the system, 1 for the internet)
• Buttons System reset
• Mesh
• Protocols IEEE 802.11a/b/g/n/ac/ax
• IEEE 802.3/3u/3ab
• Wireless Specifications 11b: DSSS: DBPSK (1Mbps), DQPSK (2Mbps), CCK (5.5/11Mbps)
• 11a/g: OFDM: BPSK (6/9Mbps), QPSK (12/18Mbps), 16QAM (24/36Mbps), 64QAM (48/54Mbps)
• 11n: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM. Data rate: MCS0-MCS15
• 11ac: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM
• 11ax: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM.
• Data rate: MCS0-MCS11 (supports 2 streams)
• Operating system MiWiFi ROM
• Security WPA-PSK/WPA2-PSK/WPA3-SAE
• Manage Supports Web, Xiaomi Home App (Android, iOS)
• Operating temperature 0°C to 40°C
• Operating humidity 10% to 90% RH
• Storage temperature -40 to 70℃
• Storage humidity 5% to 90% RH

Contents of packaging

• Xiaomi Router AX1500 x 1
• Power supply x 1
• Network cable x 1
• User manual x 1
• Guarantee x 1
